AUTOMATIC TISSUE PROCESSOR

Description

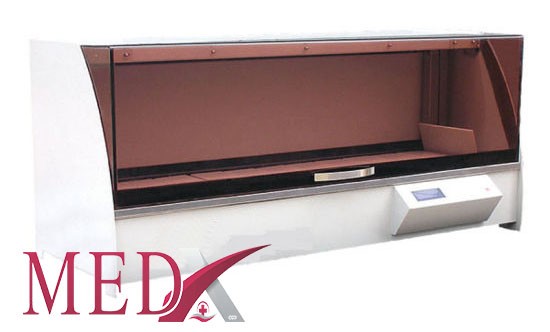

MX-TS3B Automatic Tissue Processor

Features:

The cover is elegent with fluent line and it is spraying with APS engineering plastic which has high-intensity,anticorrosion function and easy to clean With key parts imported, it runs steadily without noise and comply with theory of ergonomics

20sets programme ,broad screen touch LCD,with man-machine dialogue inerface , prompt identifying can be made in abnormal situation to make sure each operation can be indicated(online help), synchronous animation show the present working process clearly

Environment-friendly inner circulated air cleaning system,adsorb,remove,decompose toxic and harmful gas in the instrument

Randomly setting start-up time and automatically showing finish time,make sure task is finished in stipulated time

10~60s adjustable time of dropping liquid,shaking basket,and drop liquid above cylinder once exchange cylinder to avoid liquid mix from one bath to another,in this way, service time of reagent can be prolonged,aviod dirty on the table

0~6times /min adjustable stirring times(0 shows no-stirring),make sure all tissues immersed thoroughly,evenly,and completed enough

Once power-off,protecting cylinderNo.1~7 can be set,position of protecting cylinder can be adjusted as required

Self-control fan,it automatically starts up once basket goes up;as basket goes downwards,fan works 10s per min

Self-control illuminating lamp,it starts up in programming;touch any key to prolong to 2 min as the instrument is running

Waterless inner heating,high precision of controlling

Low energy-consuming control circuit,self-protection once power-off;display panel is still illumed and scrolling panel indicats it’s self-protecting situation as power-off,and time of running is more than 30 H

No less than 100 tissues can be processed one time

Technical specifications:

Numbers of station:12 (No.9 : reagent station,No.10,11,12 are wax dispensing station)

Volume of each station:1500ml

Processsing time of each station: anytime (No.1 station),0~24 H (other station)

Range of presetting temperature: ambient~80ºC

Time of exchange station,delay,leachate:10~60s (adjustable),and leachate ,basket shaking work above station

Tissue Protecting station :No.1~No.7 Cylinder(adjustable)

Voltage:AC220V 50Hz,AC110V 60Hz

Power:800VA

Dimension:1010x550x420 mm

Weight:80kg
