Conversion of Mobile Clinic

Description

1.1 Dimensions and weight (chassis)

Overall length mm 5925

Overall width mm 1995

Overall height mm 2180

Front overhang mm 1045

Rear overhang mm 1475

Max gross vehicle weight kg. 5700

1.2 ENGINE

Type 4D34-2A, 4 inline, 4 stroke, water cooled

Fuel system Direct Injection

Displacement 3907

Maximum output 105PS

Fuel Diesel

1.3 DRIVE TRAIN

Clutch Hydraulic control, Dry single plate

Transmission 5-speed, manual shift

Gear Type 1st to 5th –synchromesh gear

Reverse – constantmesh gear

Tires and disc wheels

Tire size – Front 7.00 x 16 – 10PR

Rear 7.00 x 16 – 10PR

Steering Ball nut type with integral power booster

Suspension Front: Reverse Elliot “I” beam type

on laminated leaf springs

Back: Full Floating Type on laminated leaf spring

Brakes Dual circuit hydraulic, vacuum assisted

Electrical system 12 volts x 2/24 volts – 50 A

2. BODY SPECIFICATION:

2.1 Body Frame : Pressed Machine M.S. Plate and Integrated Steel Bar

2.2 Exterior Panel : Side skinning G.I sheet ga. 18

2.3 Roofing : G.I sheet ga. 18

2.4 Interior Panel : Ordinary ply wood on integrated angular, hollow and

bended steel framing system w/ insulation between walls, polyurethane finished

2.5 Main Flooring : Marine plywood w/ rubberized Vinyl Matting

2.6 Ceiling : Lacquer Finished

2.7 Service Doors : One on the right side w/ Glass Window

One on the back w/ Glass Windows

2.8 Furniture’s : Built in shelves and counter w/ cabinets of poly urethane

finished

2.9 Body Cover : Rivetless

3. ELECTRICAL:

3.1 Fluorescent diffuser with rectangular housing.

3.2 Convenient outlets and switches

3.3 External power cord and adaptor (water proof).

3.4 Transfer switch 60 amperes 220VAC, single phase, double throw, double pole

3.5 Circuit Breakers for:

a. X-ray

b. Lighting

c. Air-conditioning

d. Convenience outlet for X-ray, Laboratory and Examination

e. Provision of power supply for X-ray, Air-con and Exhaust

4. PAINTING:

* Exterior : Auto Acrylic

* Interior : All inner skirts

5. ROOMS

5.1 Provide X-Ray Room, Dark Room, Examination, & Laboratory Counter w/ sink.

5.2 Provide Lead Sheet on X-Ray Room with 1.75mm thick Lead and Leaded Glass Viewer.

5.3 Provide Marking, Logos and Letterings.

5.4 Provide Insulation on ceiling with ACI Fiber & Styropor on all sides.

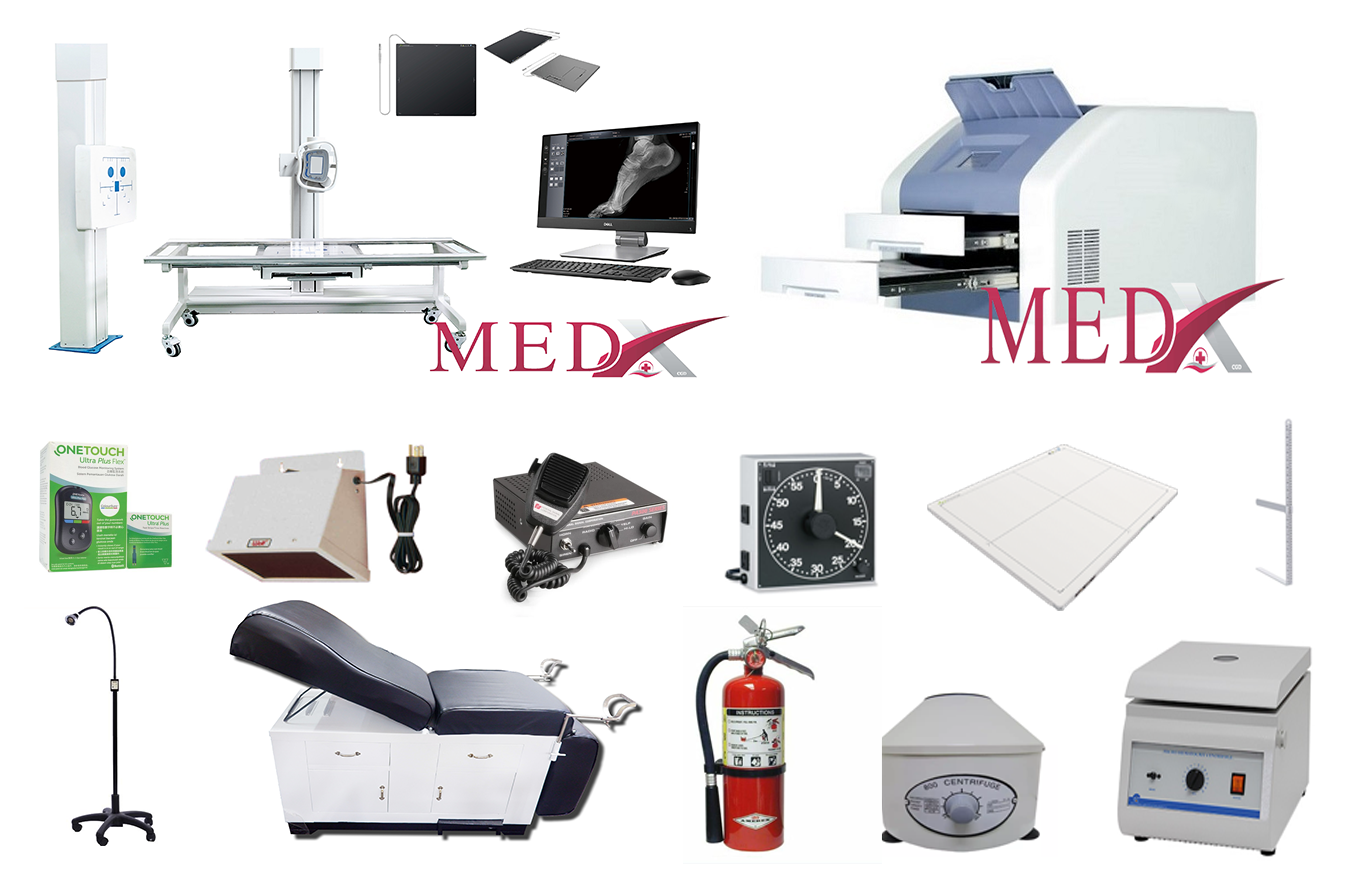

6. REQUIRED HEALTH CARE EQUIPMENTS:

6.1 One (1) unit X-RAY MACHINE, 100mA (High frequency,), complete balance-o-matic tube holder, rotating anode tube, pair of super flex federal type cab controller and full wave rectified transformer.

Provide Lead shielding, lead glass viewer, & complete dark room accessories

Such as:

· X-ray Caliper

· X-ray timer

· Cassette w/ I.S. 11 x 14, 8 x10

· Film hanger 11 x 14 , 8 x 10

· Dark room safelight

· Single Film viewer

· Automatic film processor

· Lead Apron

· Lead Gloves

6.2 Examination table

6.2.1.1 Examination Table (Hamilton Type w/ cabinets)

6.2.1.2 Examination light

6.3 Laboratory counter w/ sink

6.3.1.1 Clinical Centrifuge 6 Placer

6.3.1.2 Micro hematocrit centrifuge 24 placer

6.3.1.3 Glucometer

7. NON – MEDICAL EQUIPMENT

7.1 One (1) unit ¾ H.P. window type

7.2 One (1) unit 1.5 H.P. Split type Aircon

7.3 One (1) unit Fire extinguisher

7.4 One (1) unit Public Address System w/ siren

7.5 One (1) unit Stainless Steel water tank built – in, 60 liters capacity.

7.6 One (1) unit Extension cord #10 standard THW, 10 meters long with

water proof male plug , and heavy duty female plug at

the other end.
