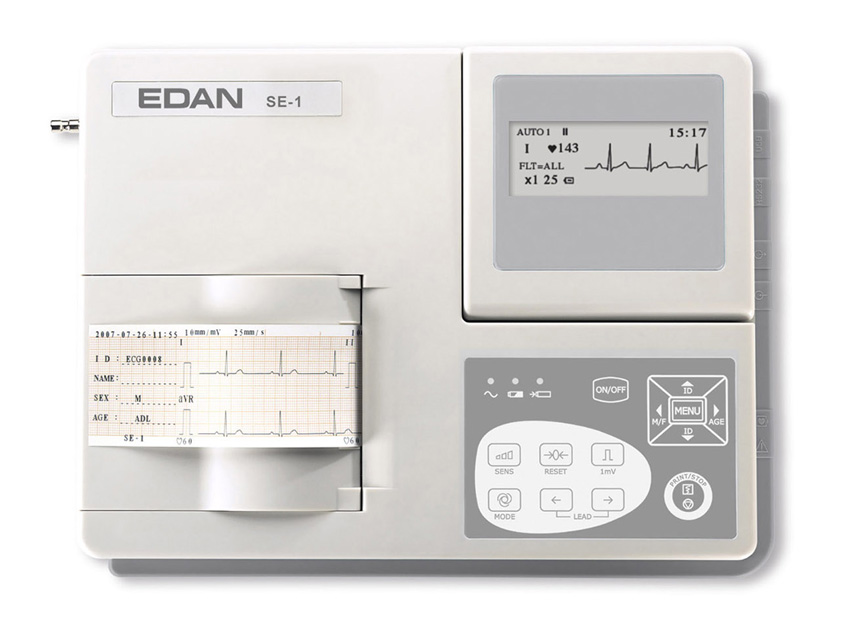

ECG MACHINE SINGLE CHANNEL EDAN

Description

https://www.gimaitaly.com/DocumentiGIMA/PaginePDF/EN/326_ENG.pdf

Technical Specifications

• Lead: Standard 12 leads
• Acquisition mode: Single
• Sensitivity: 2.5, 5, 10, 20, mm/mV
• Input impedance: > 50 MOhm

• Filter:
– EMG Filter 35 Hz (-3 dB)
– AC/DFT Filter 50 Hz / 60 Hz (-20 dB)

• Recording mode: Auto/Manual
• Rhythm lead: Any lead selectable
• Safety standard: IEC I/CF

• Power supply:
– AC: 100 V – 115 V / 220 V – 240 V, 50/60 Hz
– Rechargeable Li-ion battery: voltage 14.8 V
– More than 3 hours continuous operation with battery supply

• Thermal paper: 50 mm x 30 m
• Paper speed: 25 mm/s, 50 mm/s (± 3%)

• Dimension: 300 x 260 x 75 mm
• Weight: 2,3 kg with battery included
• Display: 192 x 64 pixels LCD
• Selectable display language: GB, IT, FR, ES, PL, RU, TR, UA
• Interface: RS 232
