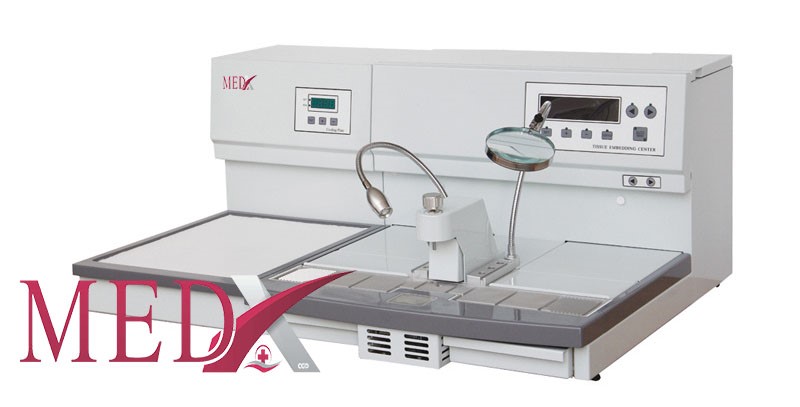

Tissue Embedding System

Description

CLICK HERE TO DOWNLOAD BROCHURE

>>https://drive.google.com/file/d/1NqYux1j5_Mok1SYXR-mifwgEAkfKviV5/view?usp=sharing<<

Features:

* Low-voltage, safe and bright LED lamp

* Manual and automated operation modes

* Flexible heating mechanism and PID technology

* Trimming plates at both sides for convenient tissue block trimming

* Freezing temperature can be adjusted due to the use of a new-type inverter compressor

* Adjustable gravity-feed paraffin dispenser using latest heating and DC low-voltage control mechanism

* Flexible module configuration options through a design separating Cryo Module from Embedding Module

* Seven working areas are individually controlled and work independently without interference by each other

* A big magnifying glass can be adjusted at any direction and angle, suitable for embedding extremely small tissue specimens

Optional:

MX-CPII Tissue Cooling Plate

Temp. Range of Cryo Module: 0 to -20ºC

Optimal work temp.: approximately -10ºC, and the temperature is under delay protection

Model

MX-CPII

Paraffin Chamber Capacity

≥6L

Temp. Ranges

RT~85ºC

Temp.Precision

1%

Paraffin Flow Control

Finger touch plate and optional foot pedal

Display

LED screen

Size of Paraffin Chamber (W*D*H)

495*132*95mm

Thermal Chamber Size(W*D*H)

240*160*50mm

Embedding Module Working size

540mm*93mm

Small Cold Plate size

60*50mm

Power Supply

AC110V/220V±10%, 50/60Hz

Consumption

1000W

External Size(W*D*H)

675*575*395mm

Package Size(W*D*H)

780*700*550mm

Gross Weight

54kg

Cryo Module Size

315*380mm

Package Size of MX-CPII(W*D*H)

790*480*560mm

Gross Weight of MX-CPII

38.5kg
